1950 Chevy Truck — Patina Build

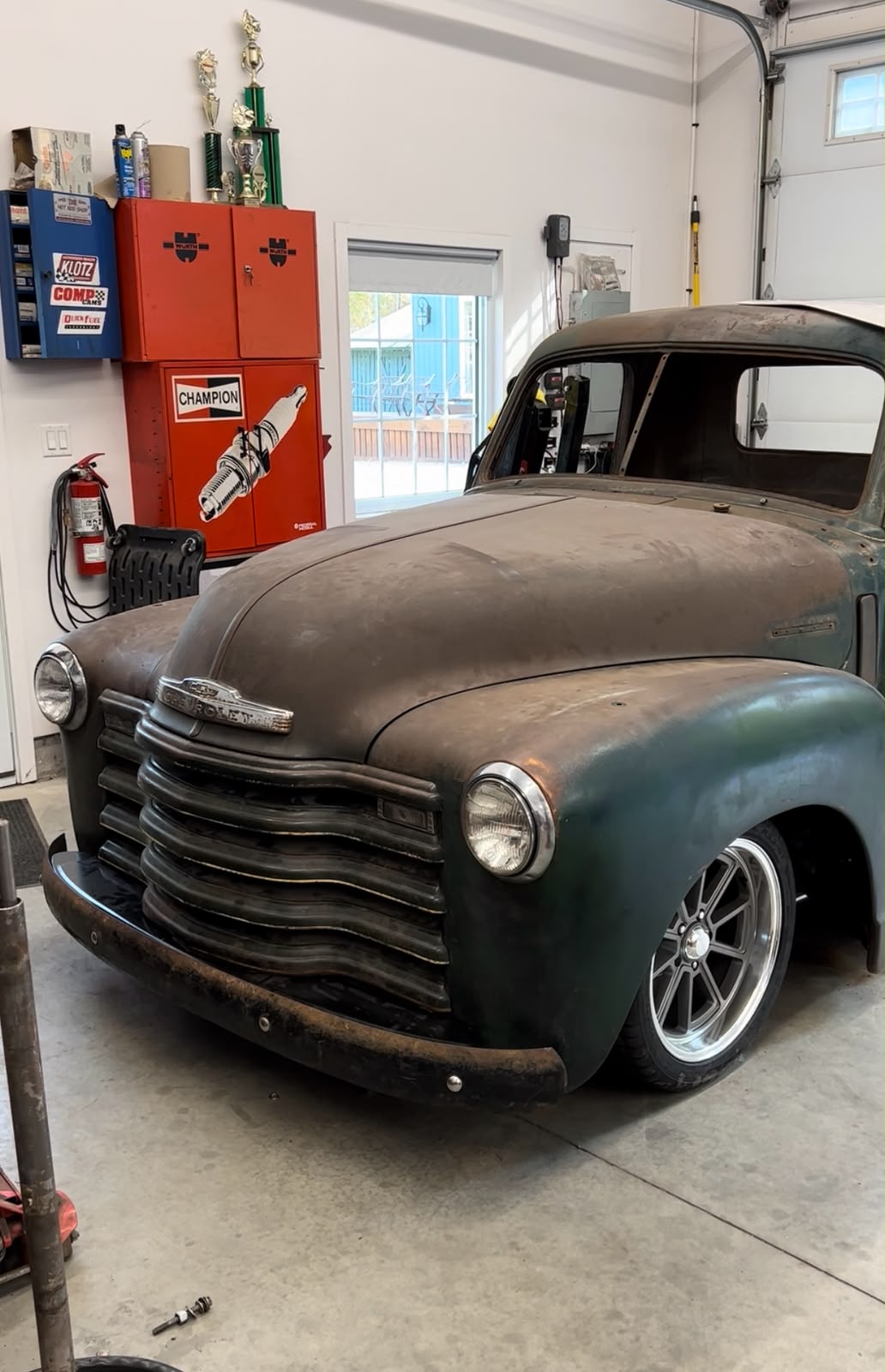

Some trucks roll off the line and never pick up a scratch. This one wears every mile it's covered right on the surface, and we wouldn't have it any other way. Around the shop, we just call it Patina.

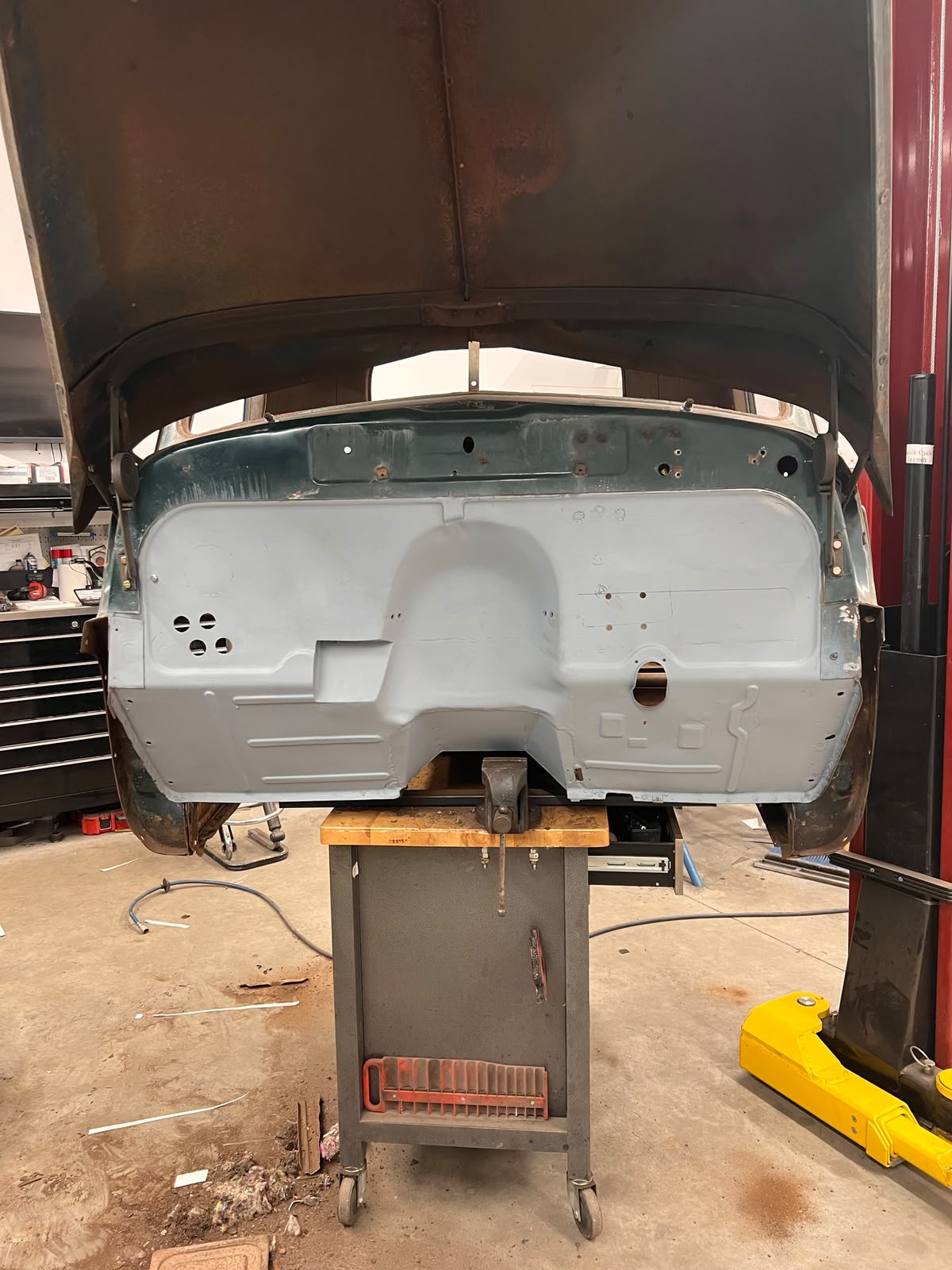

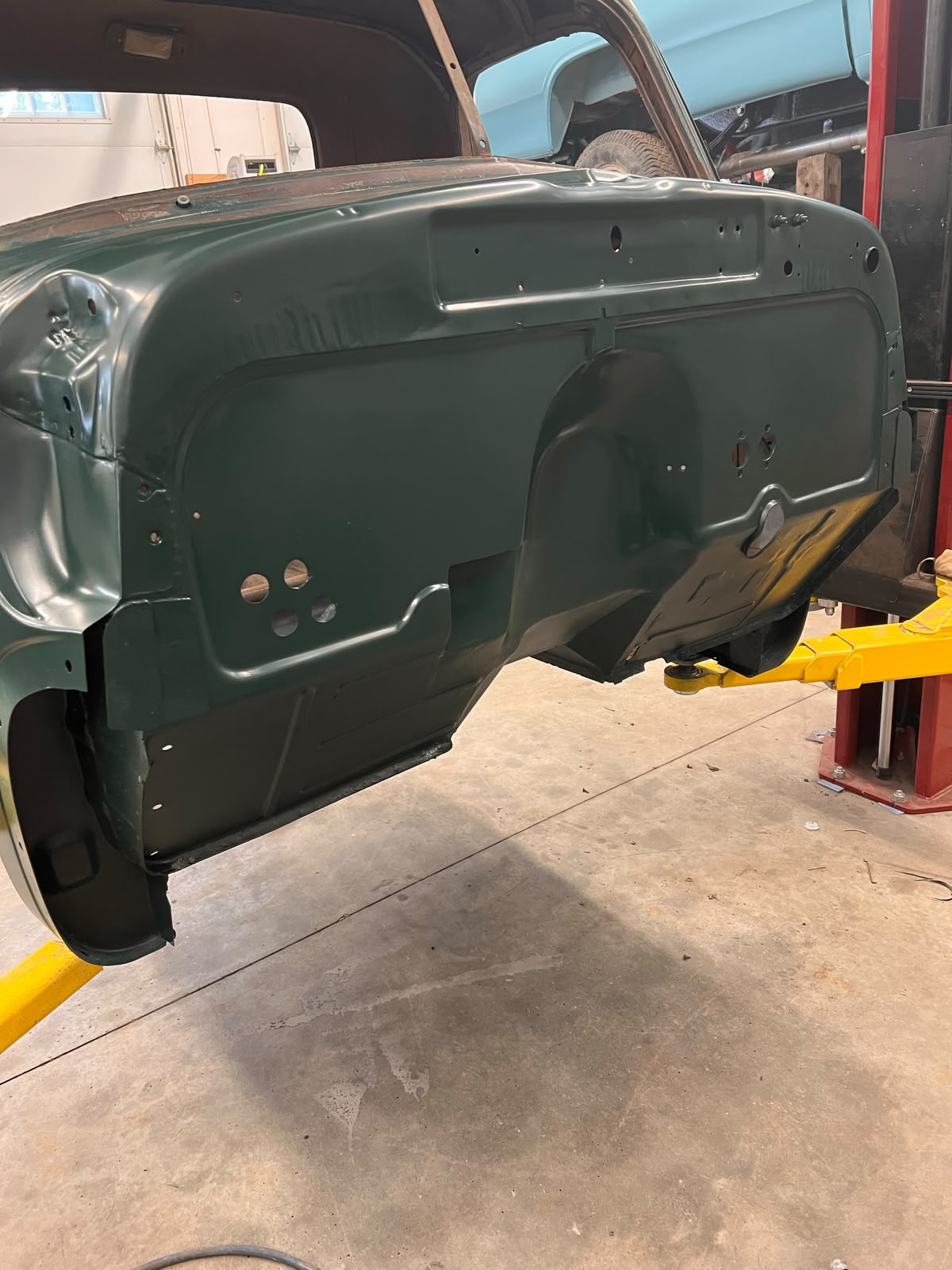

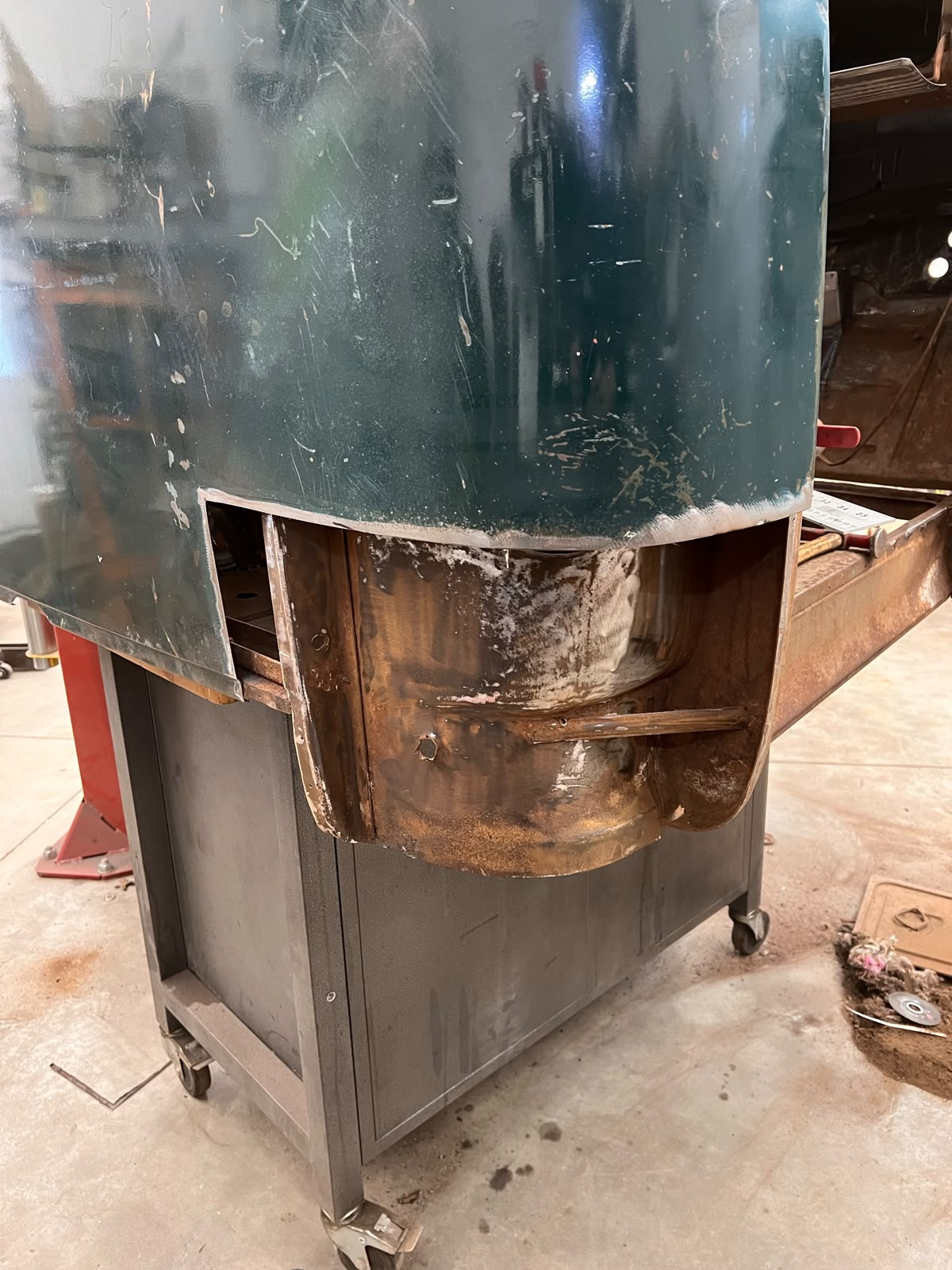

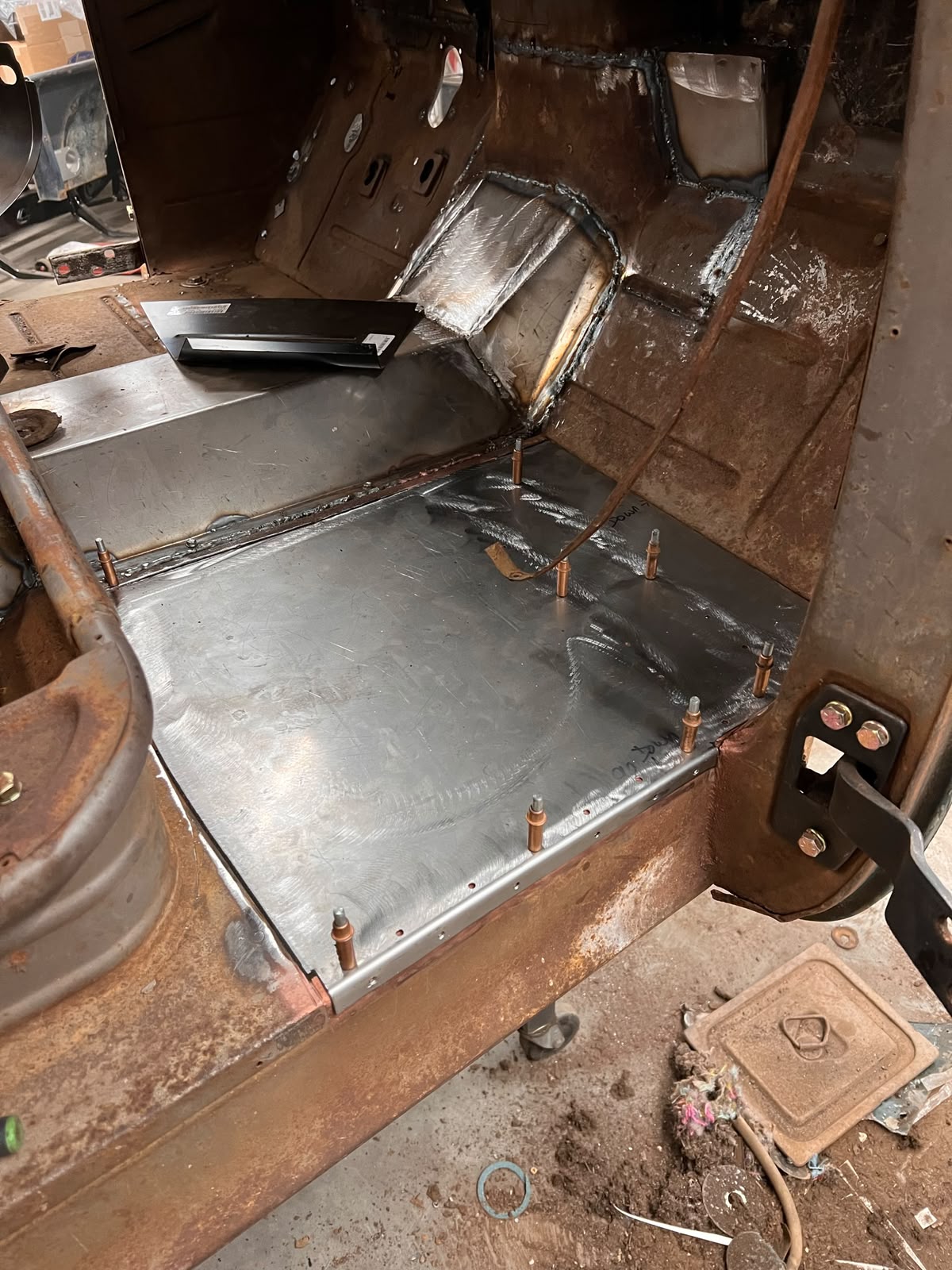

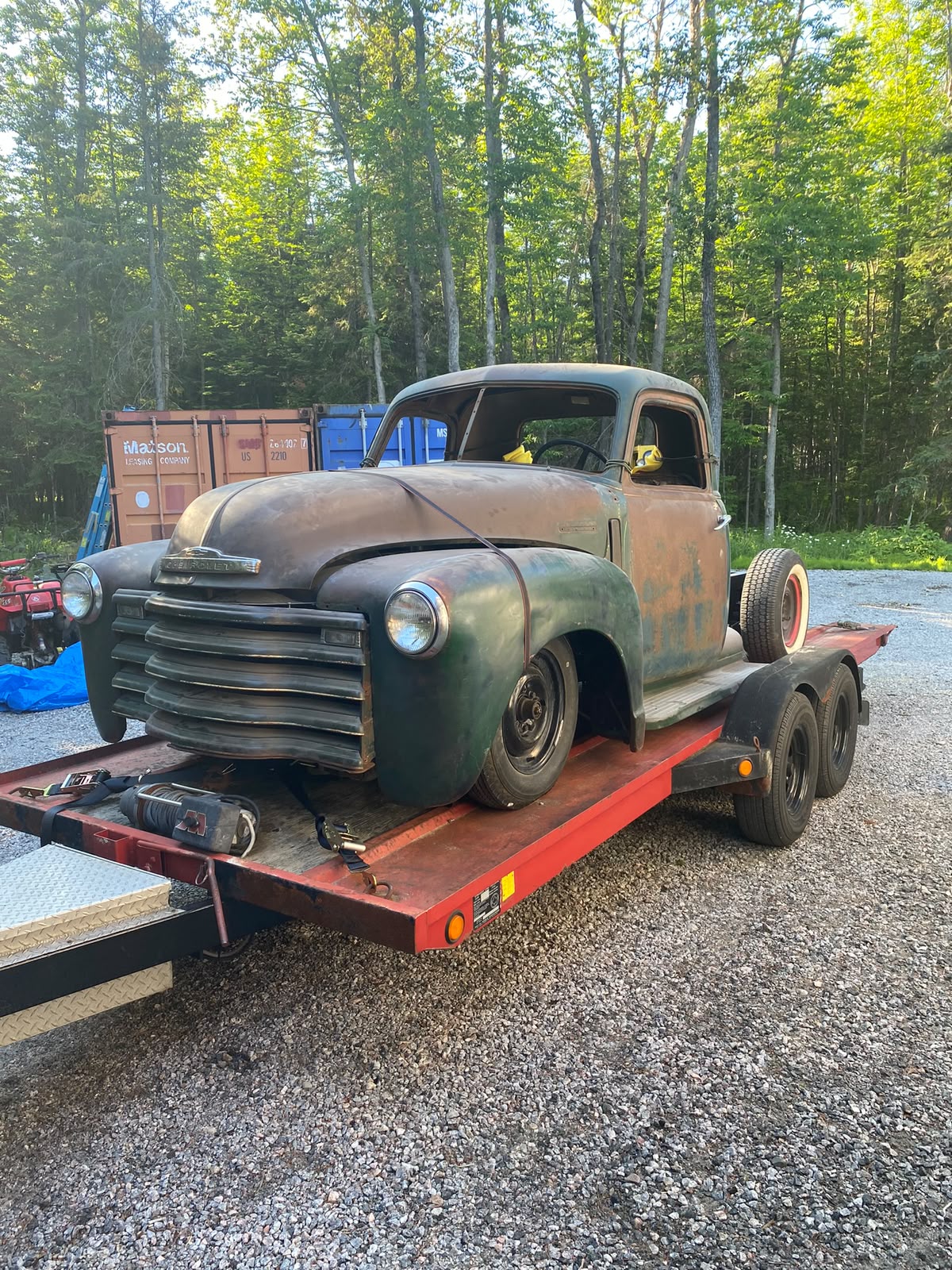

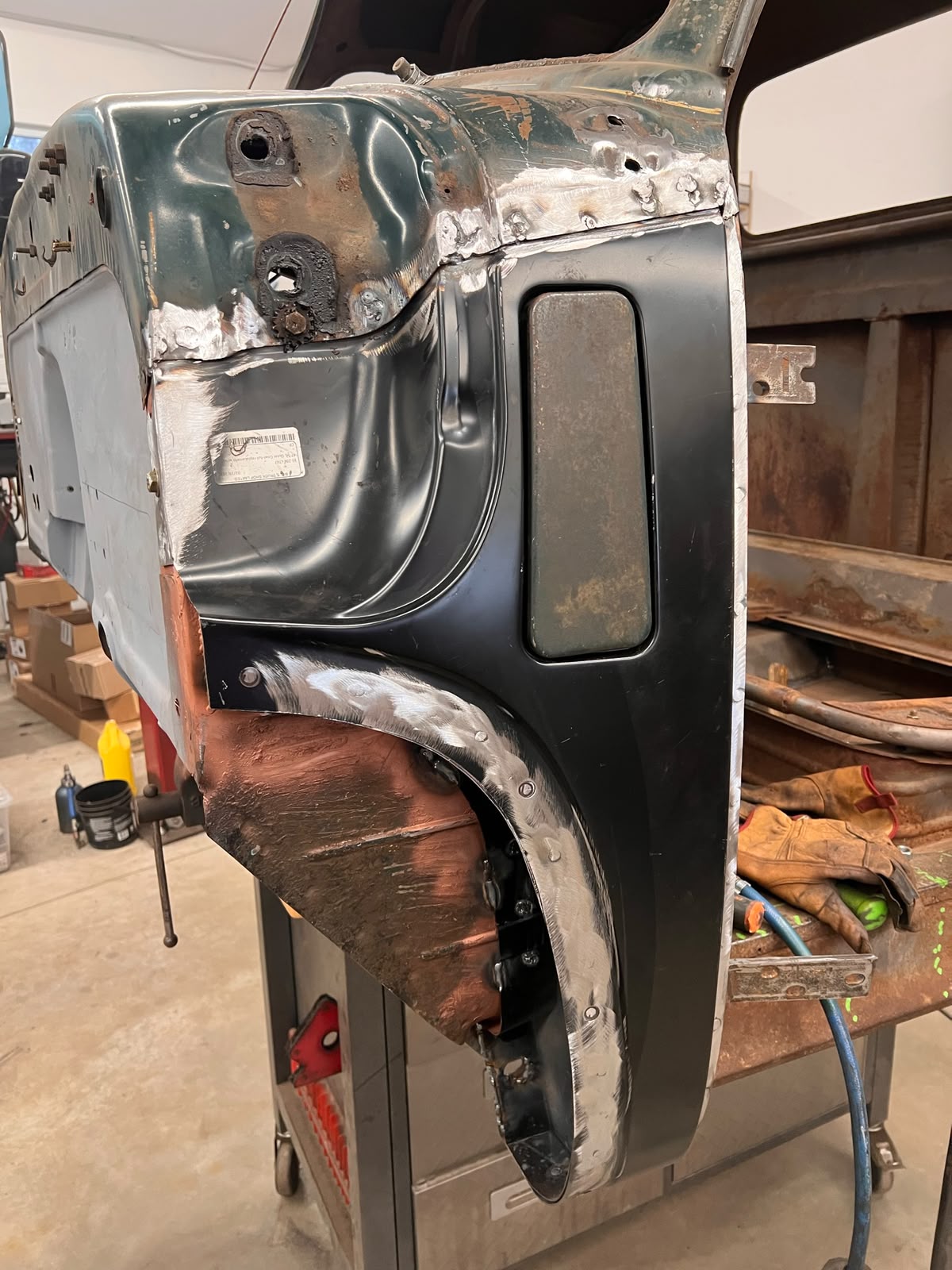

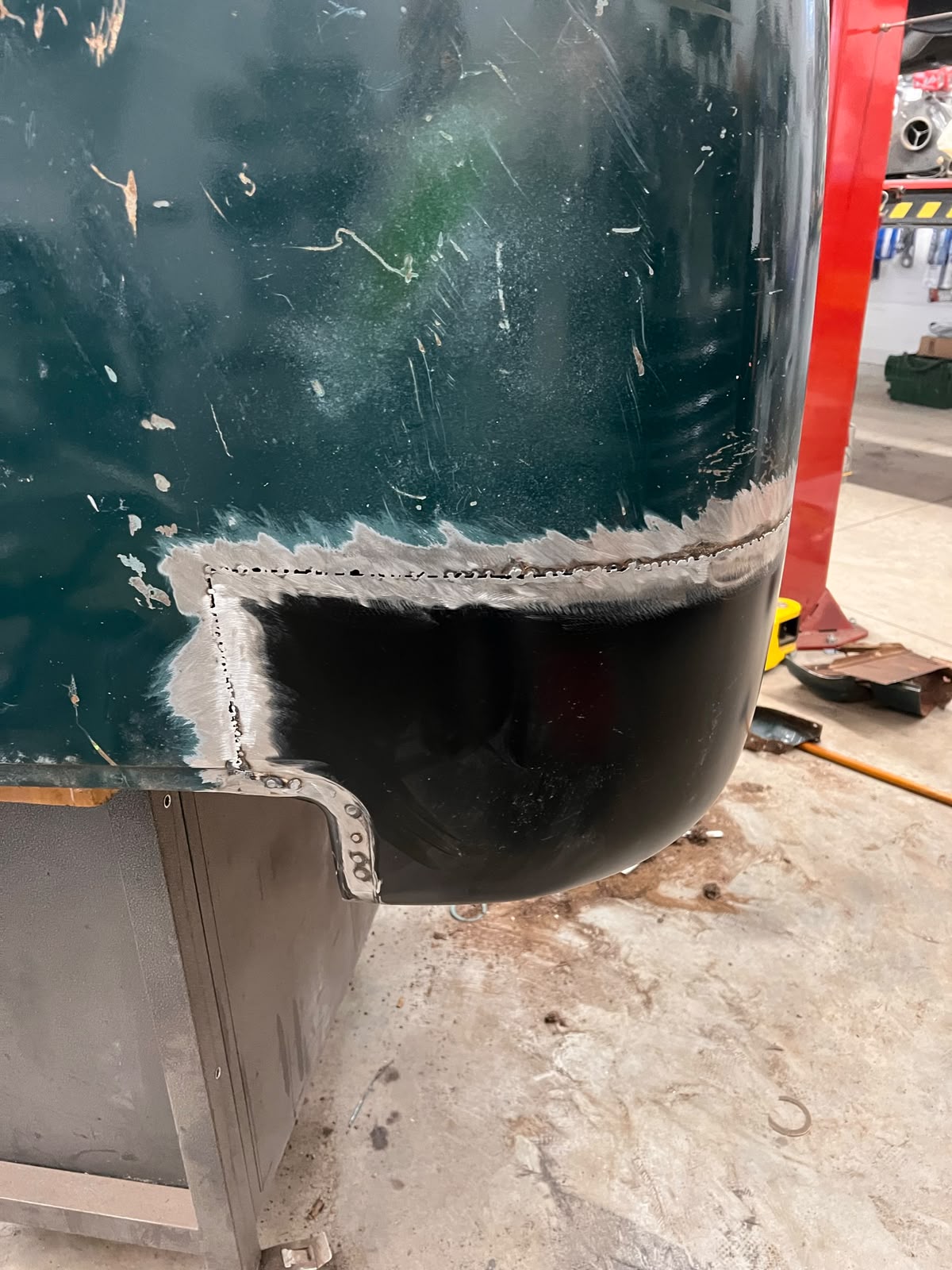

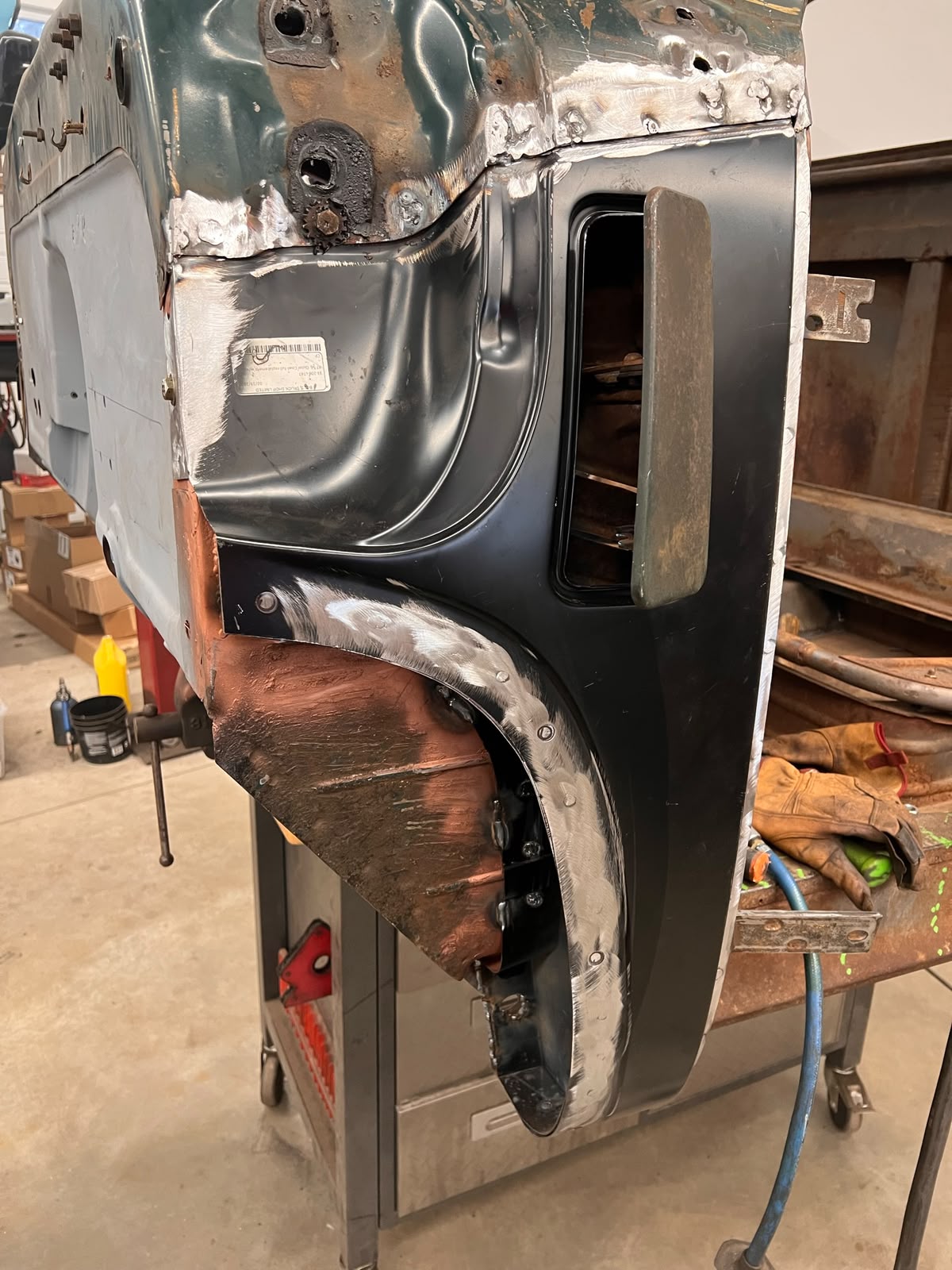

We started with a truck that had honest bones. Roughly 80% of the cab was original sheet metal. The box had come from a different truck and was originally blue, a non-starter when you're chasing a cohesive patina look, so we matched the finish to the cab. Where the steel had gone too far, we cut and replaced: floor pans, the center tunnel, lower cab pillars and the firewall got fresh paint.

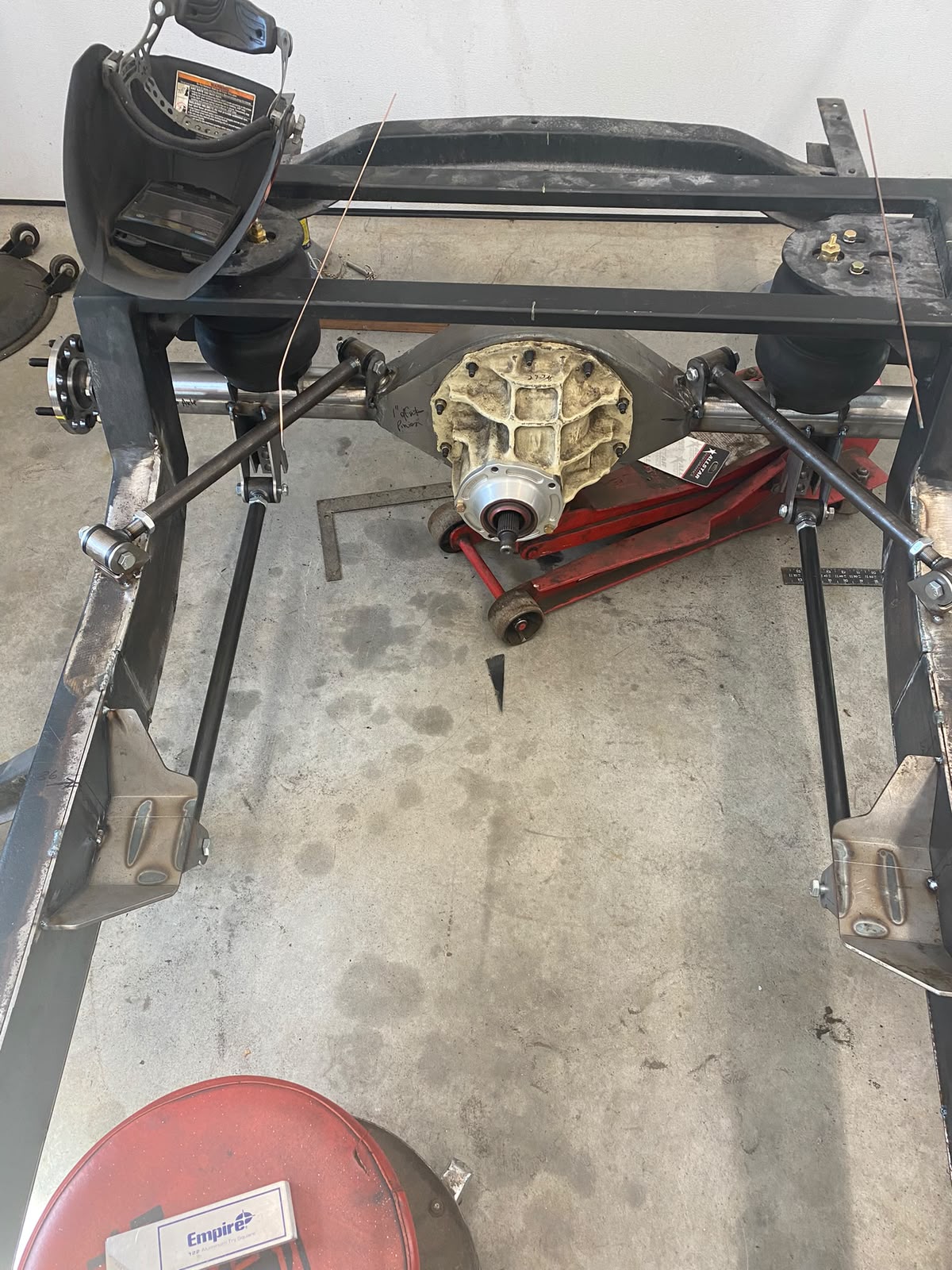

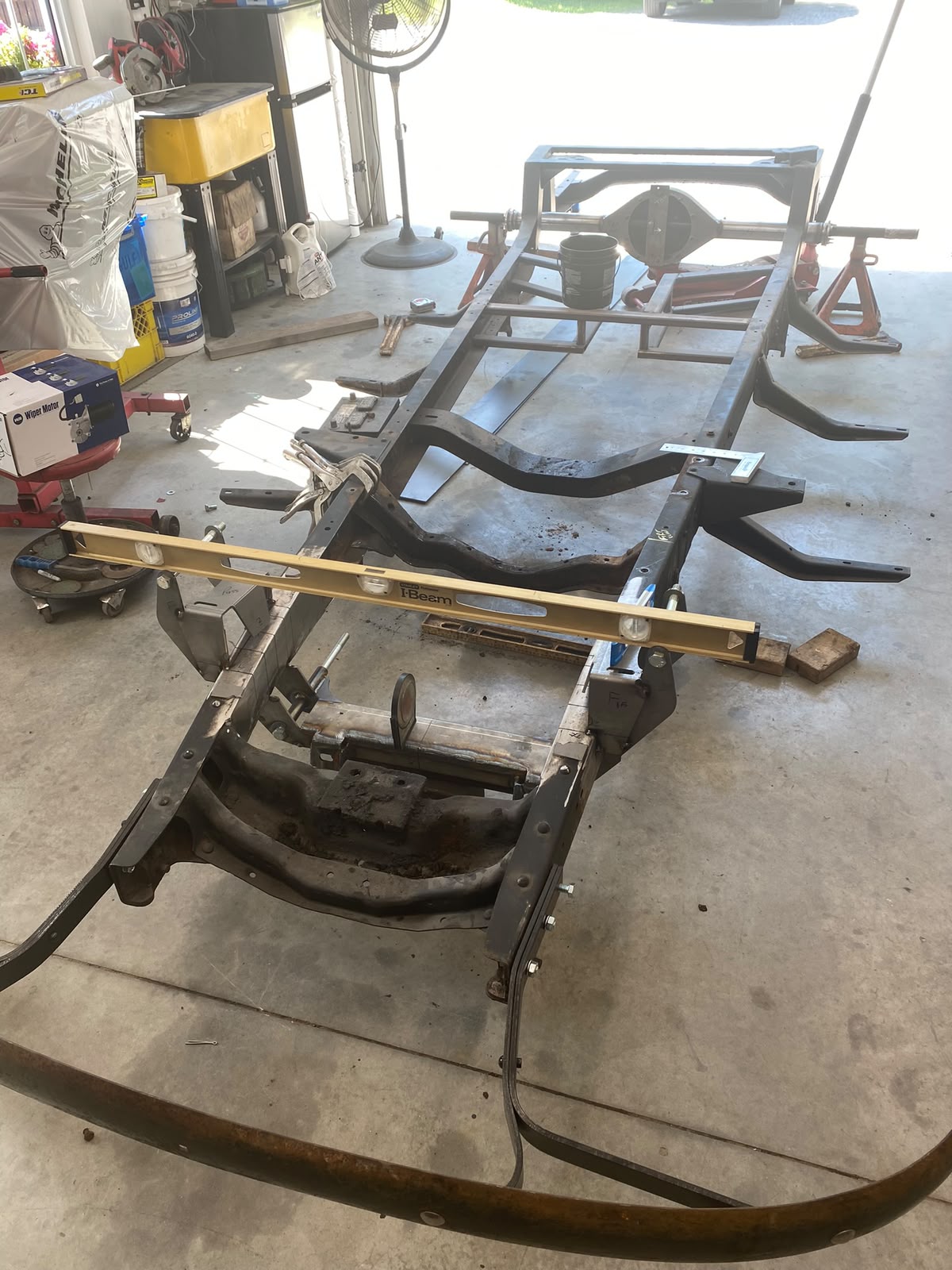

We boxed the original frame, then engineered the stance from the ground up. Up front, a Mustang II independent front suspension with power rack and pinion steering. Out back, we hung a Ford 9-inch rear end, the axle hot rodders have trusted for decades, on a triangulated 4-link. No leaf springs, no bind. The 4-link keeps the housing planted under throttle and eliminates the lateral movement that a parallel setup allows. And because stance is non-negotiable, the entire truck rides on a full air suspension system. Dump the bags and the running boards kiss the pavement. Air it up and it sits at a driveable ride height that handles real roads without compromising the look.

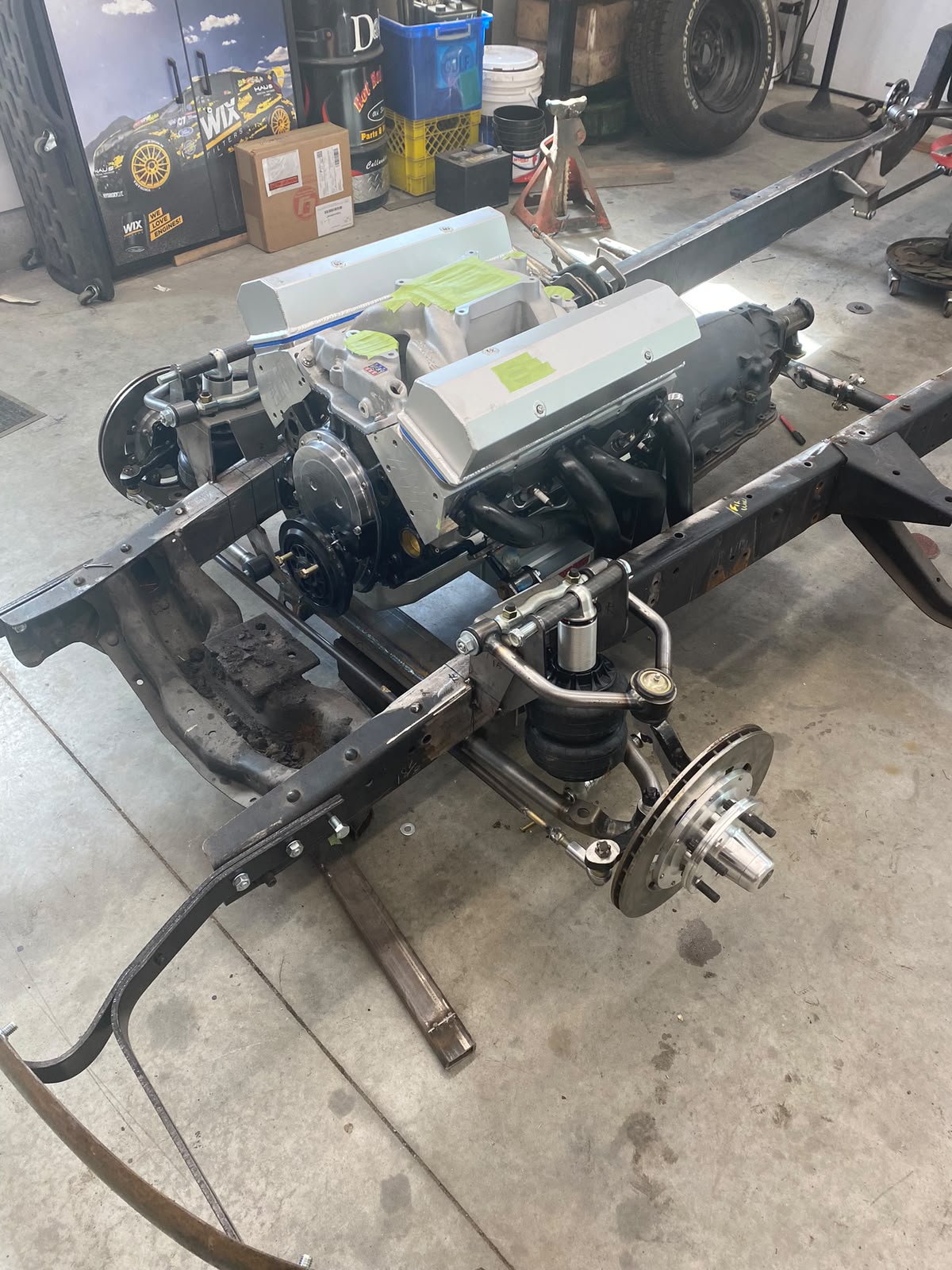

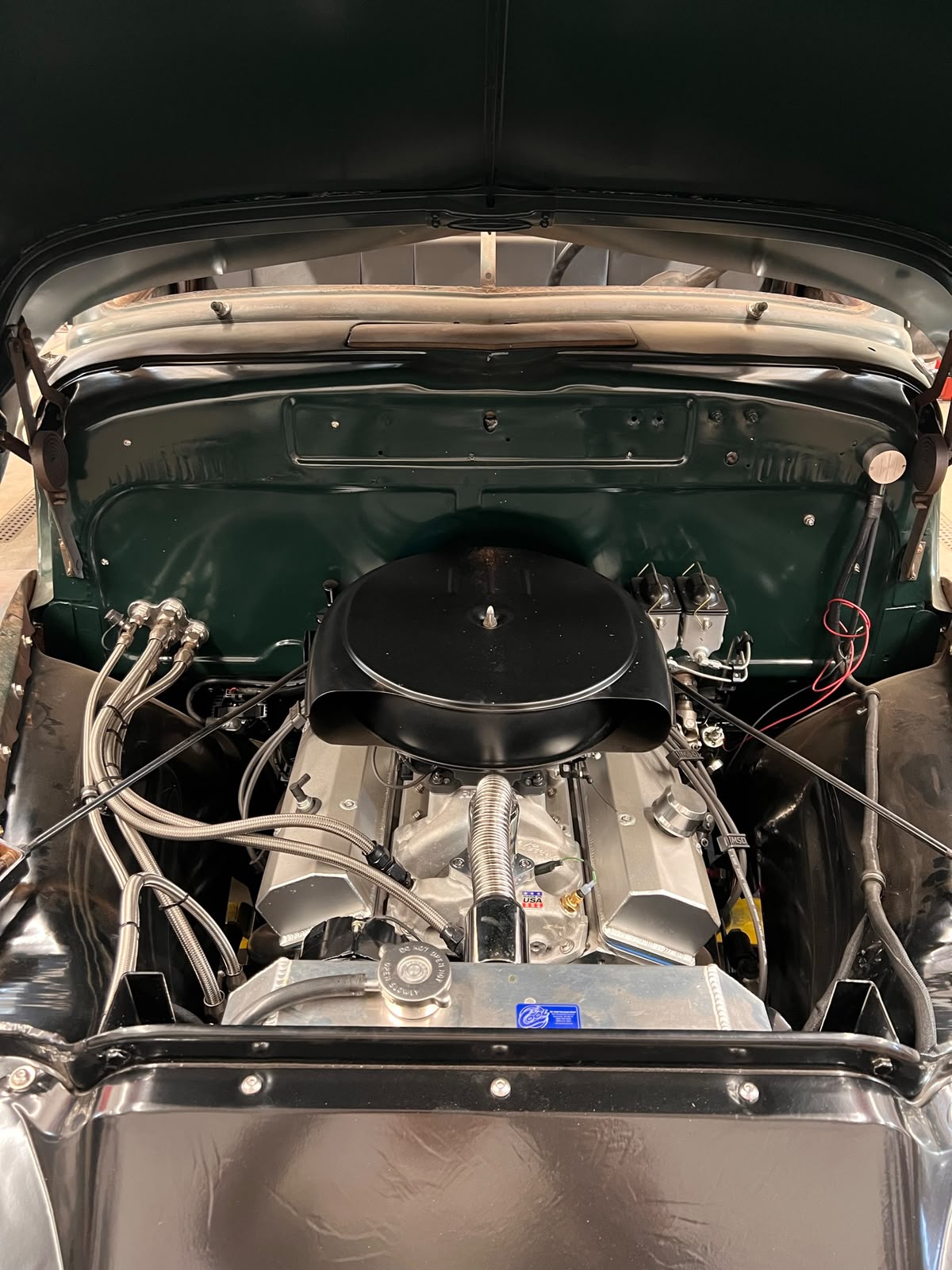

Power comes from a 383ci small block Chevy stroker we built right here in the shop. The recipe is a classic: a 350 block, bored .030-inch over, fitted with a 3.75-inch stroke crankshaft. Behind it, a GM 700R4 four-speed automatic with overdrive. The 3.06:1 first gear gets it off the line hard, and the 0.70:1 overdrive makes highway cruising genuinely comfortable. We ran custom mandrel-bent exhaust from the headers back.

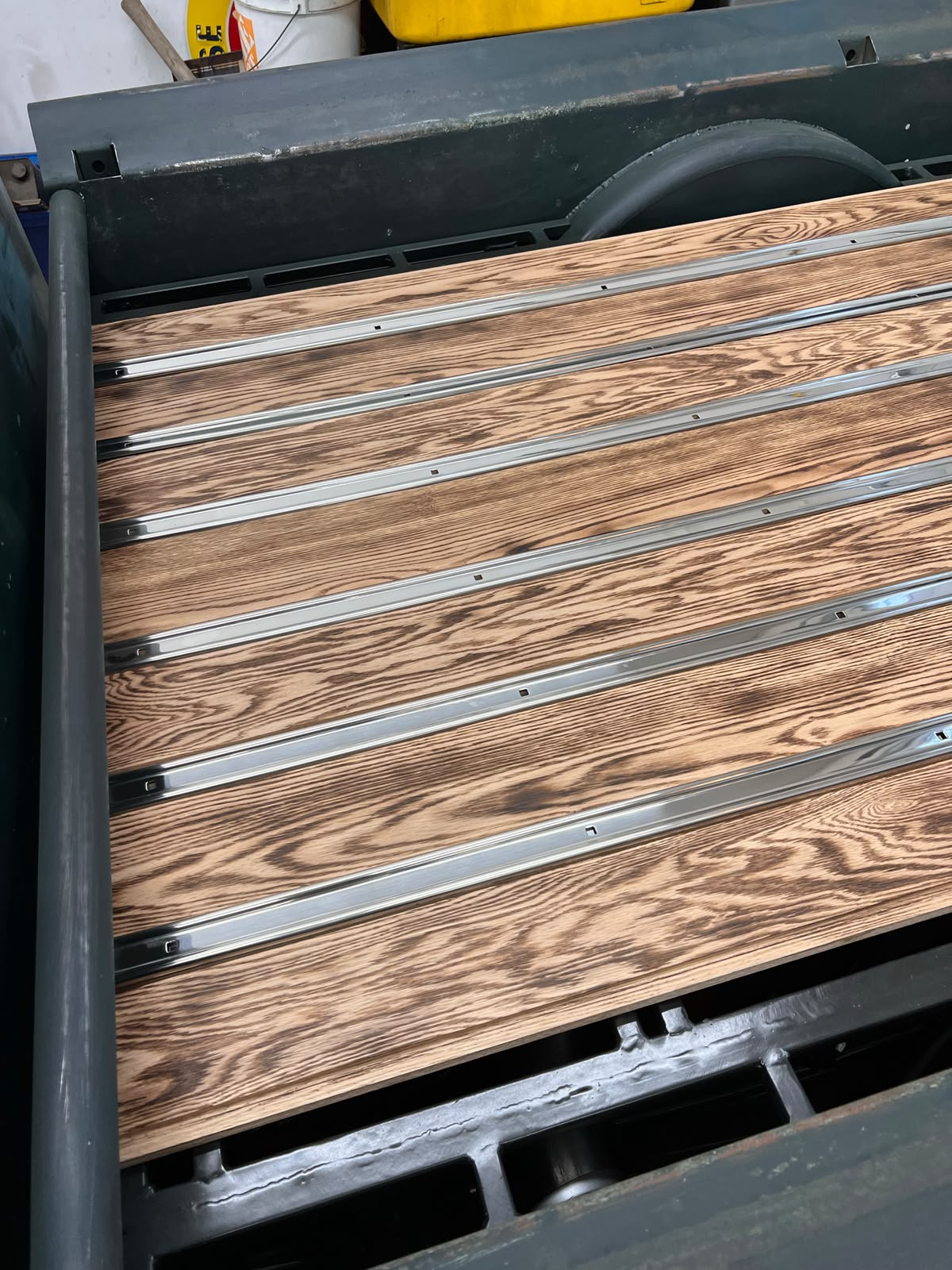

The real showpiece is the bed. We didn't stain that oak, we torched it. Run a flame over the grain and the tannins rise up out of the wood, leaving a deep, uneven char that no stain can touch. Once it hit the colour we wanted, we locked it in with a matte clear.

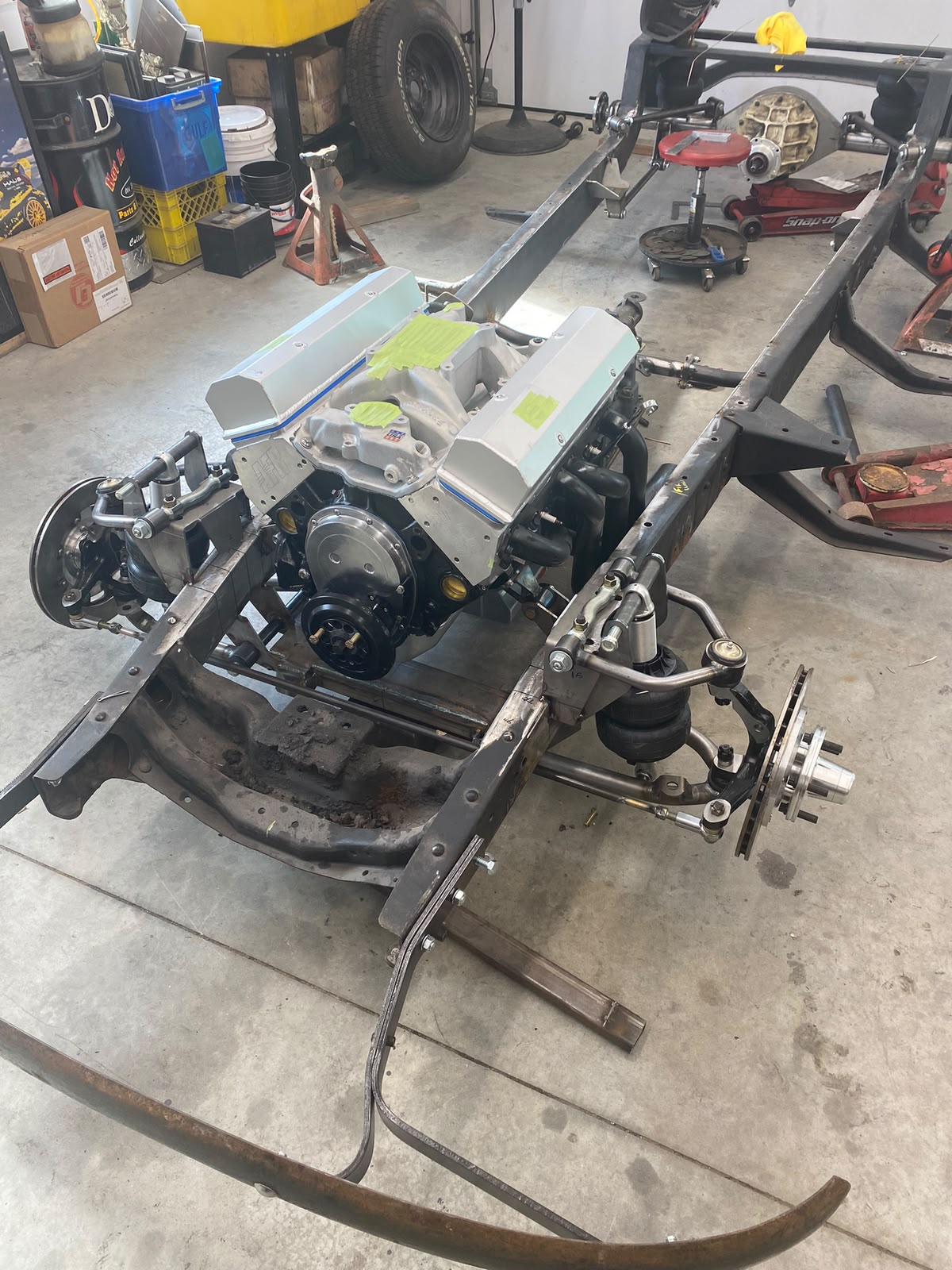

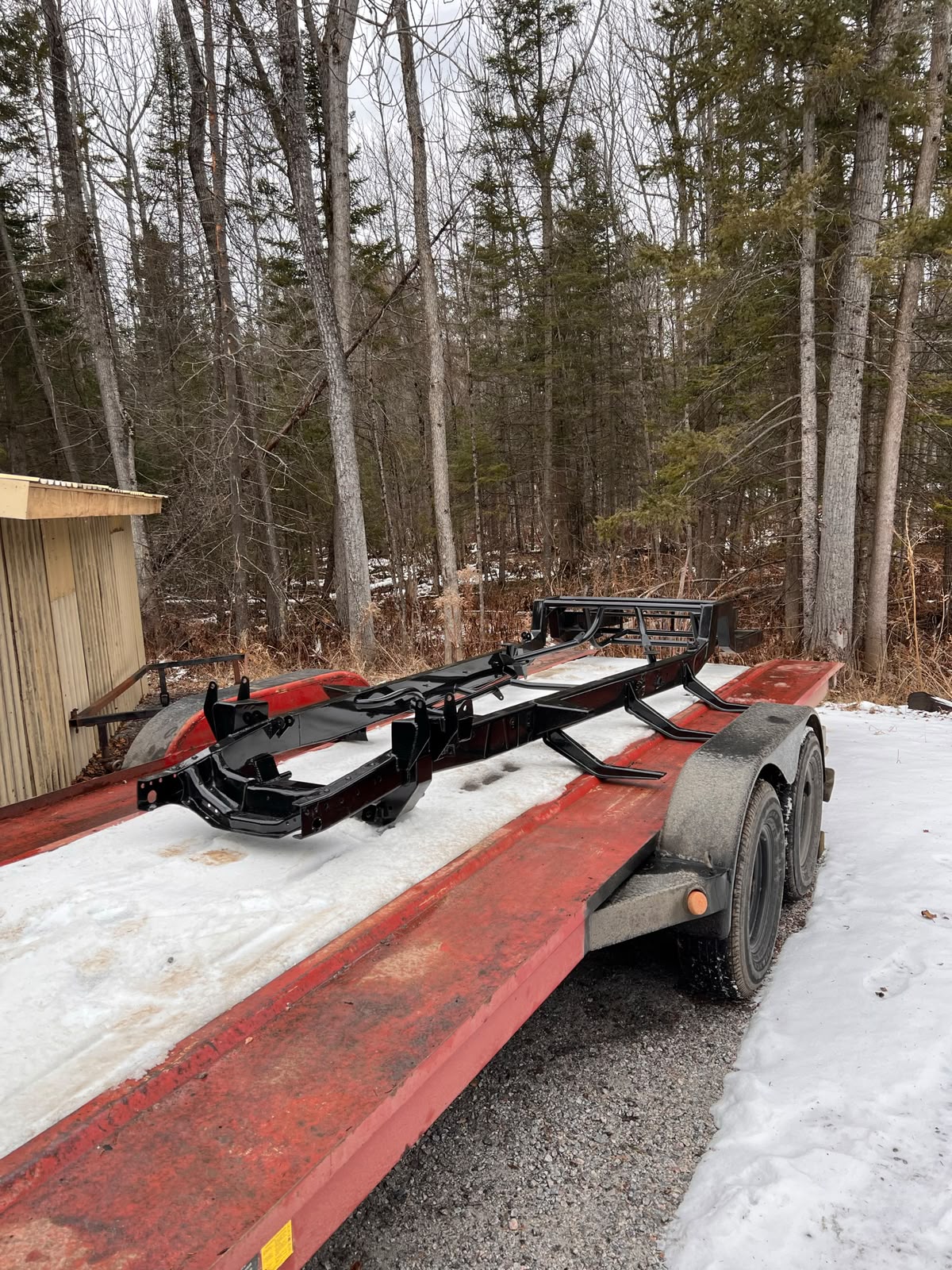

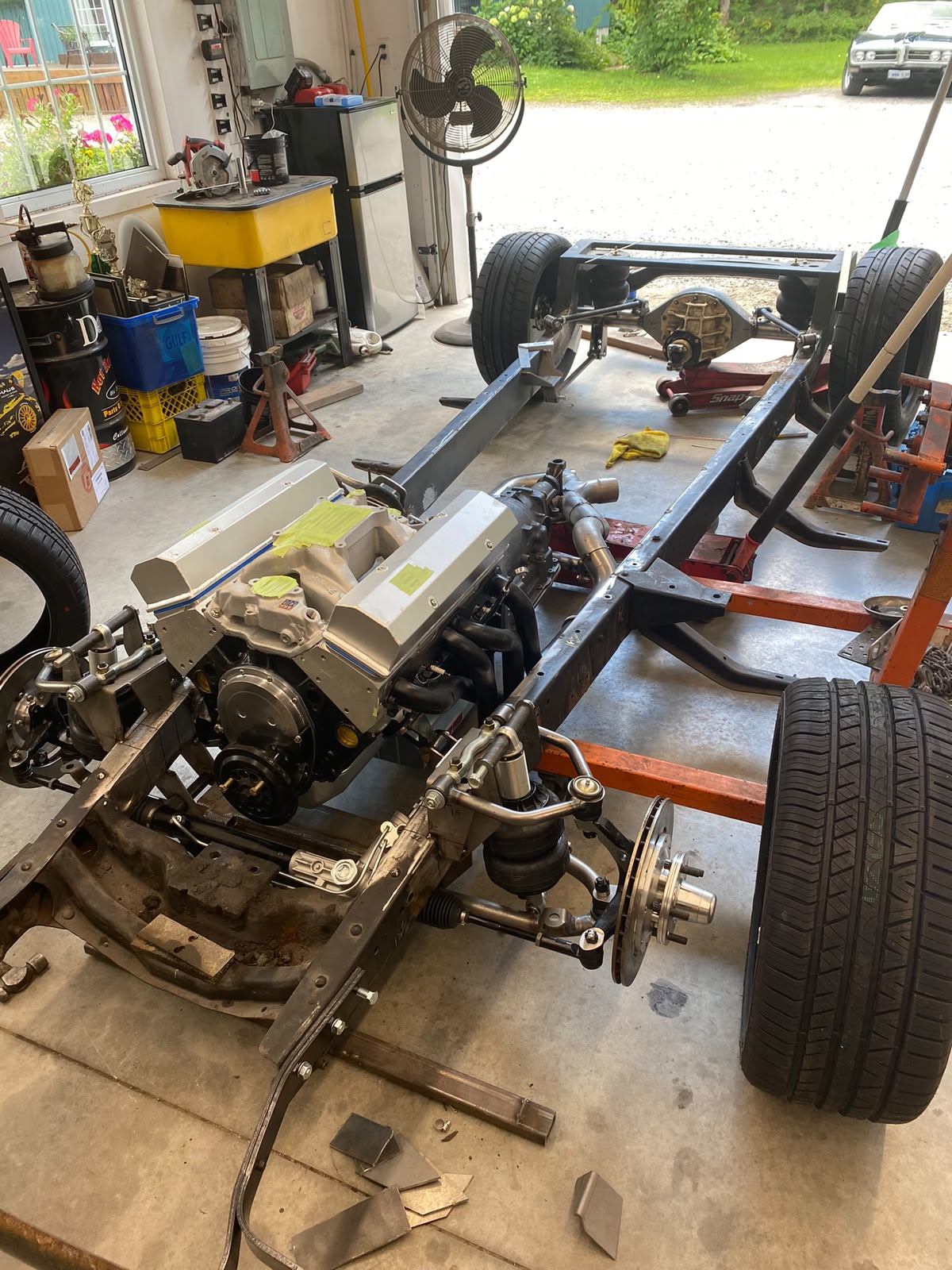

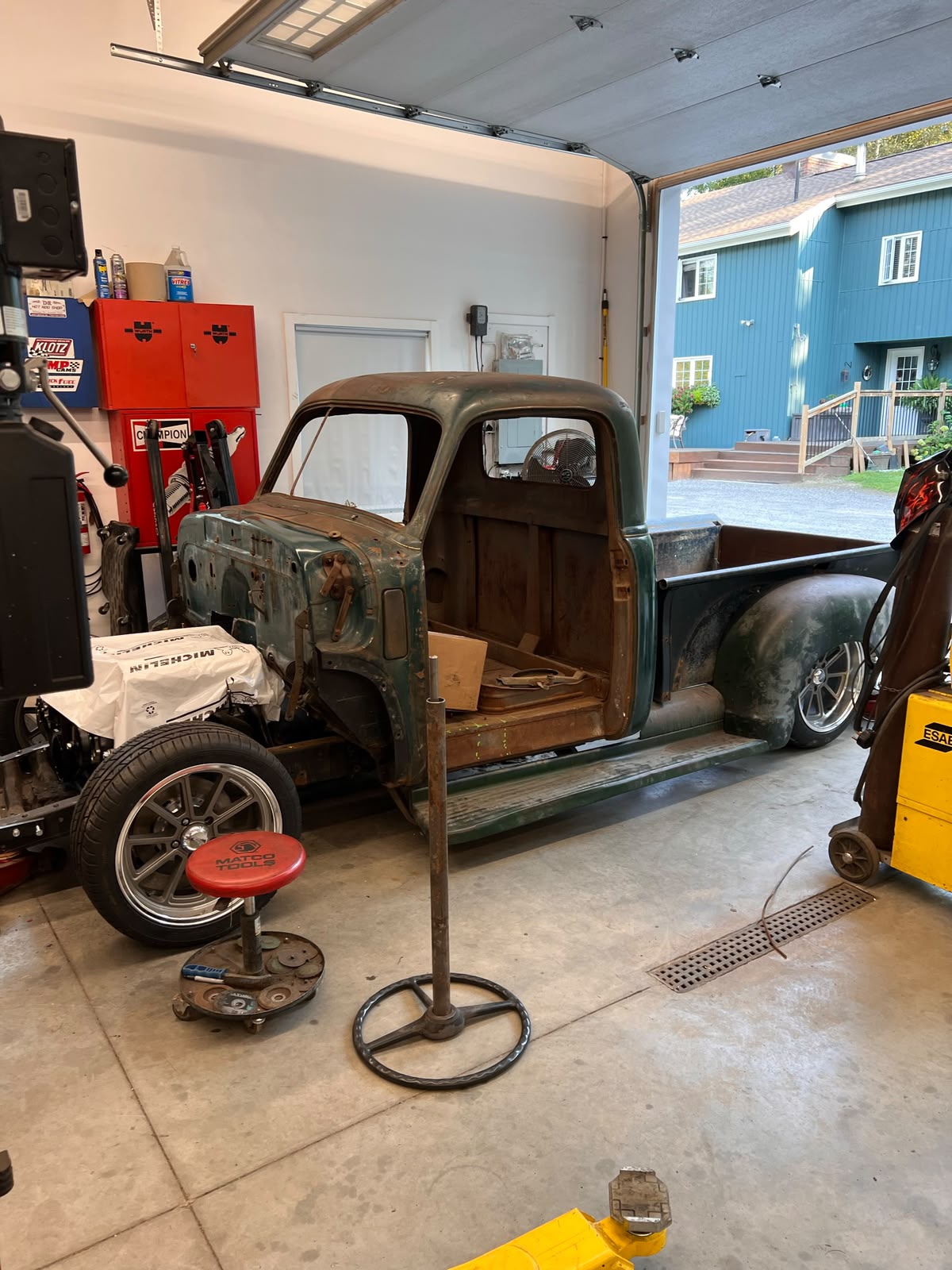

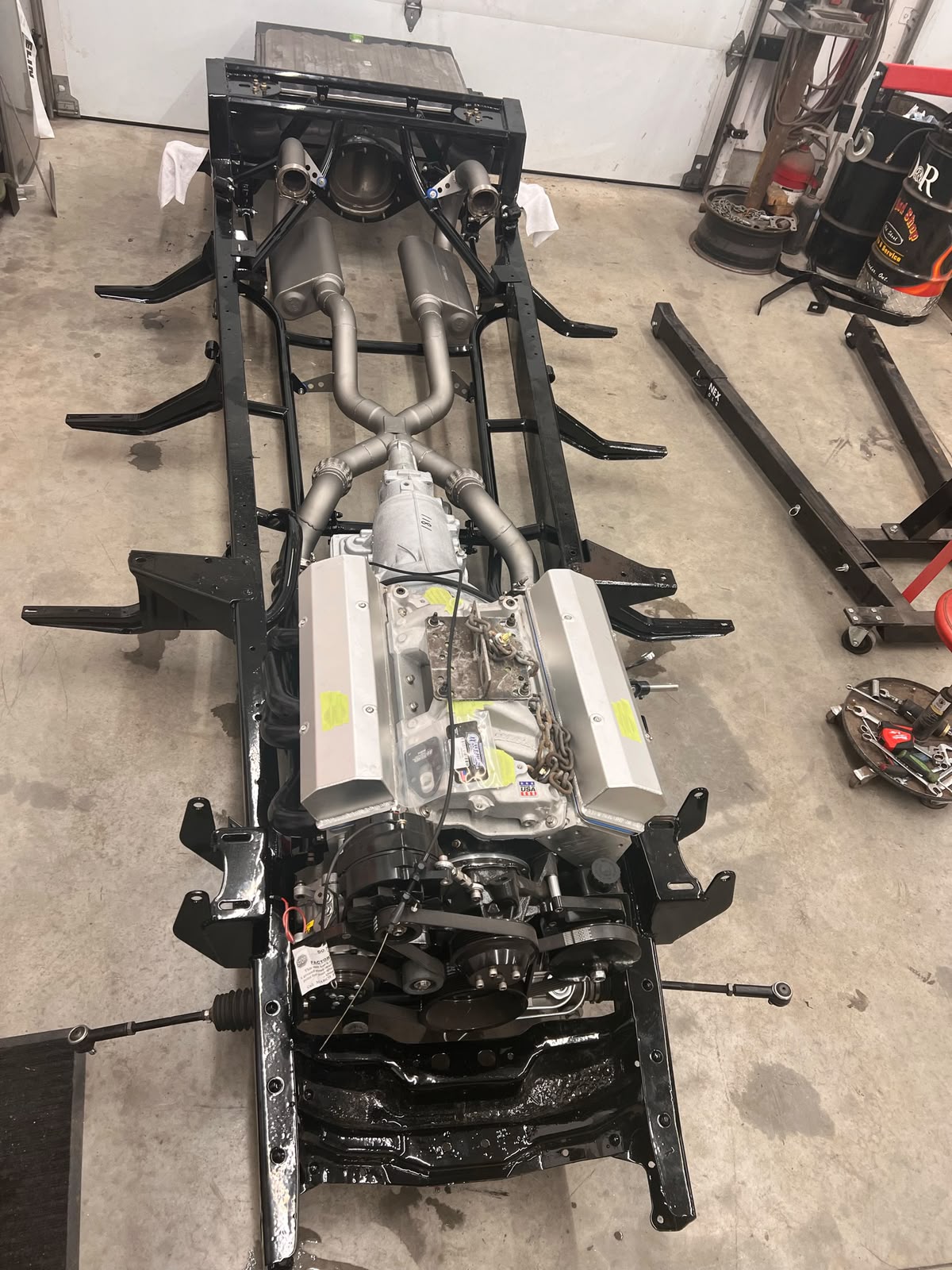

Before anything went to paint, the whole thing went together as a mock-up: engine, trans, suspension, body, bed, all bolted in place, so we could see how it sat and where everything cleared. Then it came back down to a bare frame. The chassis went off to powder coat, which outlasts wet paint five times over. With the frame empty, every bracket, link, and fastener got its moment. Final assembly took a couple of long days, and it went fast because the wiring was already test-fit and cut to length and the engine had been run and tuned on the stand. When it rolled out the door, it was a finished truck, not a project.

Build Highlights

• Frame: Original frame boxed for rigidity and powder coated for a finish that holds up to the elements. Cleaner and tougher than any undercoating.
• Front Suspension: Mustang II independent front end with power rack and pinion steering, replacing the stock straight axle for modern handling, a smoother ride, and dramatically better turning radius.
• Rear Suspension: Triangulated 4-link locates the Ford 9-inch rear end without a Panhard bar. The angled upper links control lateral movement naturally while allowing full articulation through the air suspension's range.

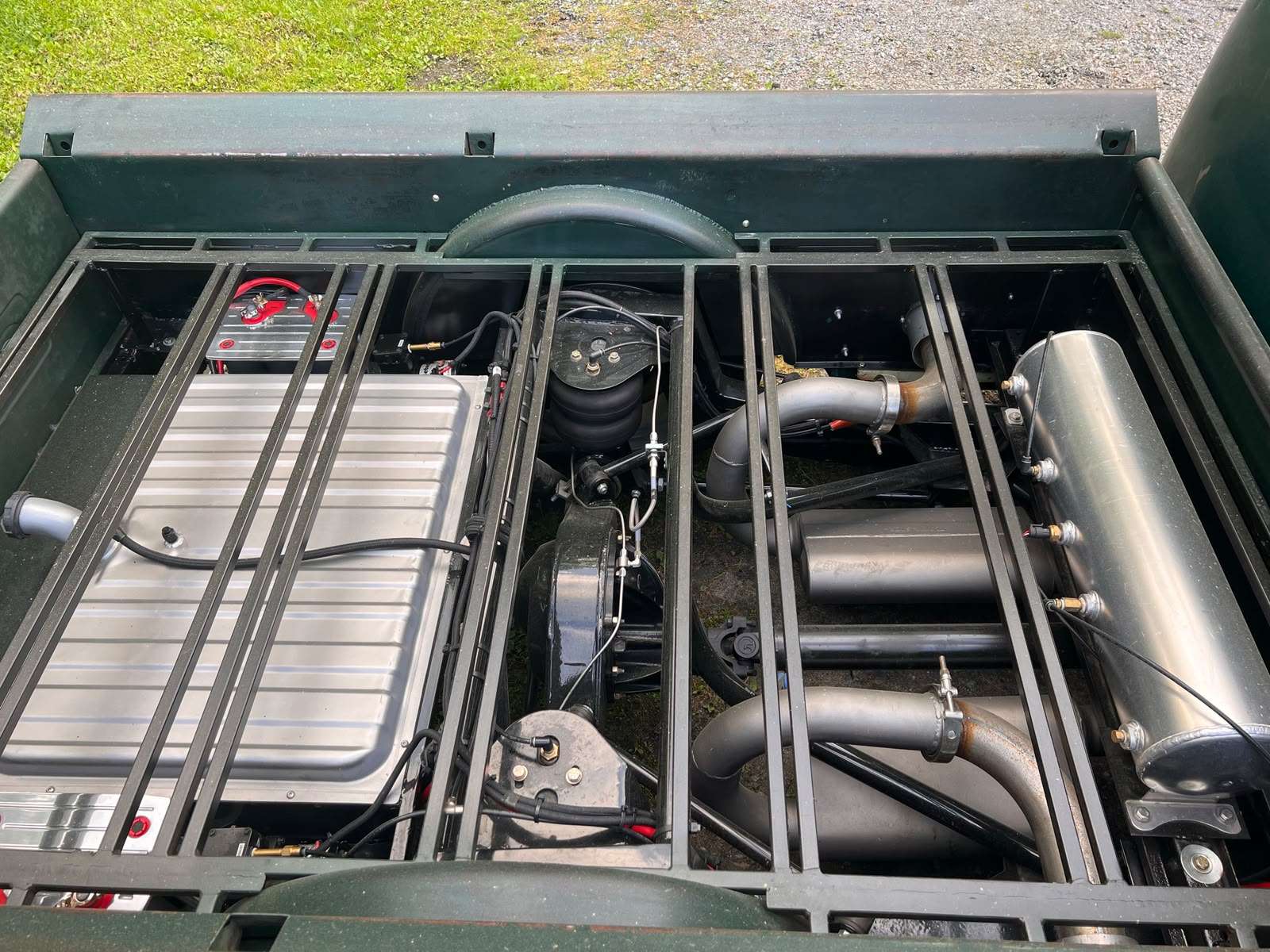

• Air Ride: Full air suspension front and rear. Adjust ride height on the fly, dump the bags to lay running boards flat on the ground, and air up for comfortable highway driving.
• Engine: Chevrolet 383ci small block stroker, built in-house. A 350 block bored .030 over with a 3.75-inch stroke crank producing a broad, usable torque curve.
• Transmission: GM 700R4 4-speed overdrive automatic with a deep 3.06 first gear for strong launches and a 0.70:1 overdrive fourth for relaxed highway cruising at modern speeds.

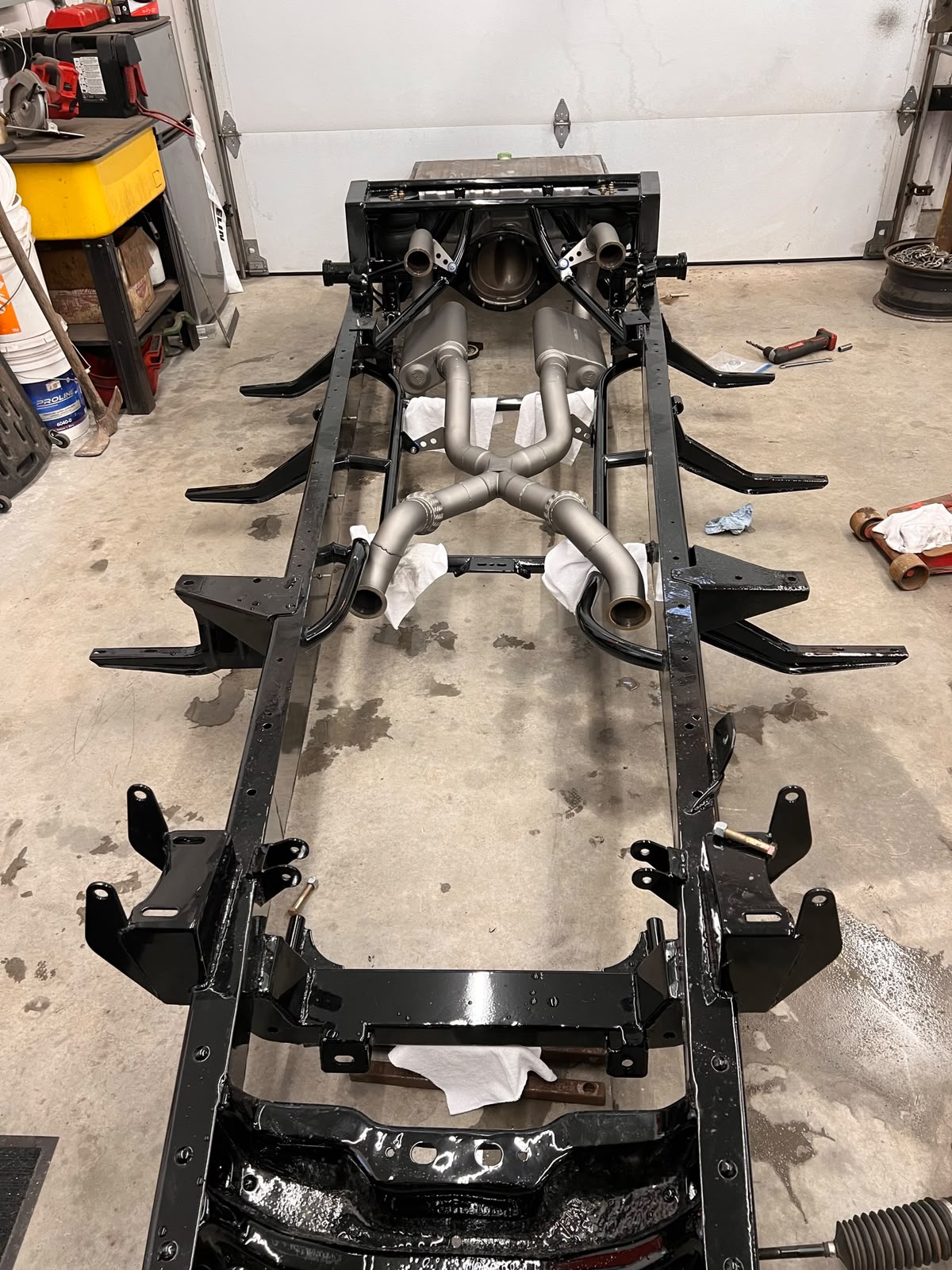

• Exhaust: Custom mandrel-bent exhaust from headers to tailpipes. Constant-diameter bends preserve flow and produce a clean, uninterrupted note.
• Body: Approximately 80% original cab sheet metal with replacement box patina-matched to the cab. Floor pans, center tunnel, and lower pillars replaced where needed; firewall refinished.
• Bed Wood: Oak planks finished by torching rather than staining. The flame draws natural tannins to the surface for a deep, organic color, then sealed with matte clear for protection without gloss.
